Steel gate钢闸门

Views : 0 Update time : 2021-3-20 17:45:33

Steel gate is one of more than 20 kinds of gates produced by Rongcheng water conservancy Co., Ltd., which is made of high-quality steel. The equipment is used for water retaining and sealing equipment commonly used in water supply and drainage engineering, water conservancy and Hydropower Engineering, and is composed of door frame, gate, sealing ring and adjustable wedge pressure block. After the steel gate has been worn for a long time, its sealing sur...

INQUIRY

Steel gate is one of more than 20 kinds of gates produced by Rongcheng water conservancy Co., Ltd., which is made of high-quality steel. The equipment is used for water retaining and sealing equipment commonly used in water supply and drainage engineering, water conservancy and Hydropower Engineering, and is composed of door frame, gate, sealing ring and adjustable wedge pressure block. After the steel gate has been worn for a long time, its sealing surface can be ensured to work normally by wedge-shaped pressing block. The steel gate is made of high-quality steel plate as the base material, with rubber water stop and anti-corrosion as the surface for sand spraying and hot zinc spraying. The steel gate has the characteristics of reasonable and solid structure, strong wear resistance and corrosion resistance, reliable performance, easy installation, use and so on. Durability: the light steel structure is composed of cold-formed thin-walled steel member system, and the steel frame is made of super anti-corrosion cold-rolled galvanized sheet, which can effectively avoid the influence of steel corrosion in construction and use, and improve the service life of light steel members. The service life of the structure can reach 30 years.

  Steel gate in the design, the structure is very reasonable, not only the distribution is more balanced, but also the height and span of large space, more importantly, can save a lot of consumption, save raw materials, and do not need to design gate slot on the gate, so the installation price is relatively affordable, its advantages are in line with the use of many places. The steel gate can be made into plane steel gate, even steel gate, arc steel gate, machine gate as a whole is steel gate, also can be made into large steel gate, according to the needs of customers, in the anti-corrosion can do zinc spraying anti-corrosion, the service life of the gate is long, no water seepage.


  Steel gate in the design, the structure is very reasonable, not only the distribution is more balanced, but also the height and span of large space, more importantly, can save a lot of consumption, save raw materials, and do not need to design gate slot on the gate, so the installation price is relatively affordable, its advantages are in line with the use of many places. The steel gate can be made into plane steel gate, even steel gate, arc steel gate, machine gate as a whole is steel gate, also can be made into large steel gate, according to the needs of customers, in the anti-corrosion can do zinc spraying anti-corrosion, the service life of the gate is long, no water seepage.


  Our factory has more products for you, production of cast iron gate, copper inlaid cast iron gate, single and double check gate, steel gate, flap door, side flap door and other materials flap door, and various models of hoist, screw hoist, various models of hoist, radial gate, various hoist gates, as well as all kinds of trash cleaning machine, conveyor, trash rack manufacturers, products are sold to 2 domestic manufacturers More than 20 provinces and autonomous regions, deeply trusted by customers!

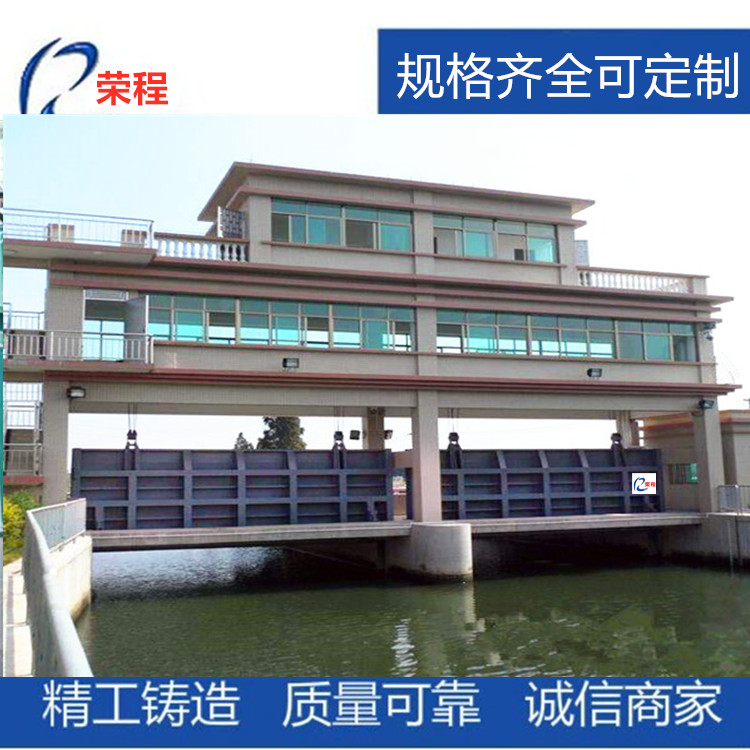

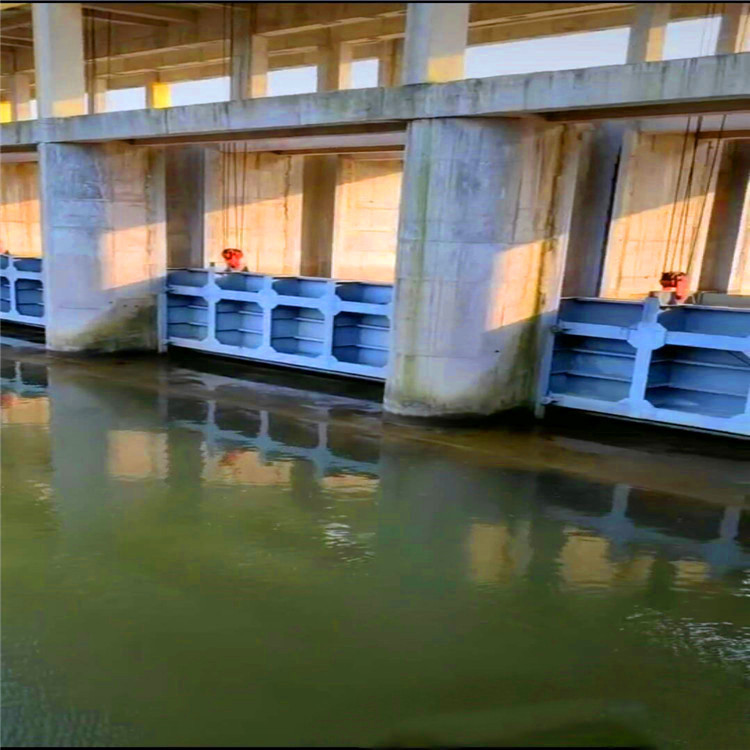

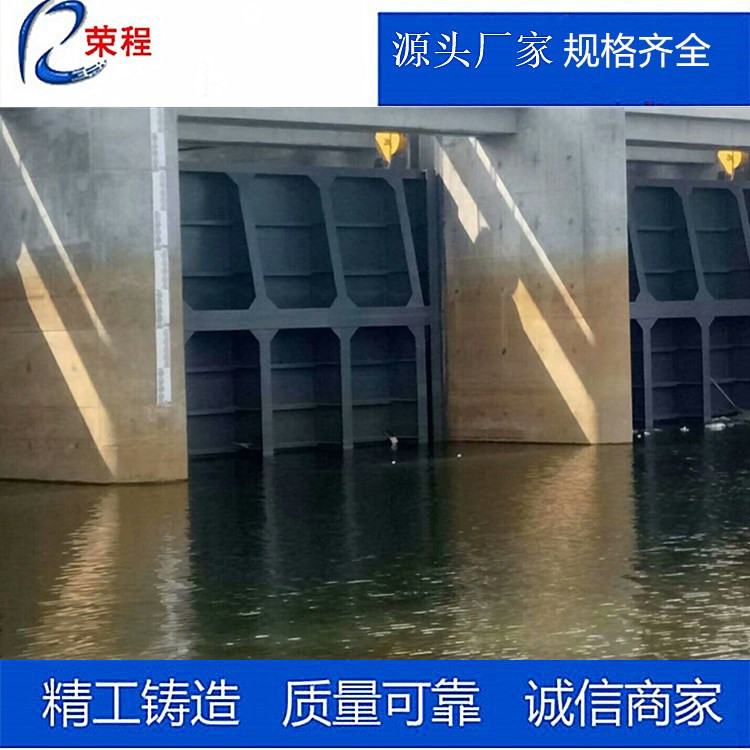

  Steel gate is widely used in waterworks, sewage plants, irrigation and drainage, drainage, petroleum, chemical industry, metallurgy, environmental protection, electric power, ponds, etc. as a cut-off, flow regulation and water level control.

  Classification of steel gate:

  1. According to the general layout, it can be divided into combined type (gate slot, gate leaf and operating equipment constitute a whole) and decentralized type (gate leaf, gate slot and hoist constitute, during operation, the gate leaf can lift the gate slot).


  2. According to the gate leaf assembly form, it can be divided into integral gate leaf type and sectional gate leaf type.

  3. According to the gate leaf support is divided into supporting type and supporting type.

  4. According to the water stop position of gate leaf, it can be divided into upstream water stop type and downstream water stop type.

  5. According to the operation condition of gate leaf, it can be divided into vertical lift type, vertical lift type, cross pull type and floating box type. In addition, there are other categories.

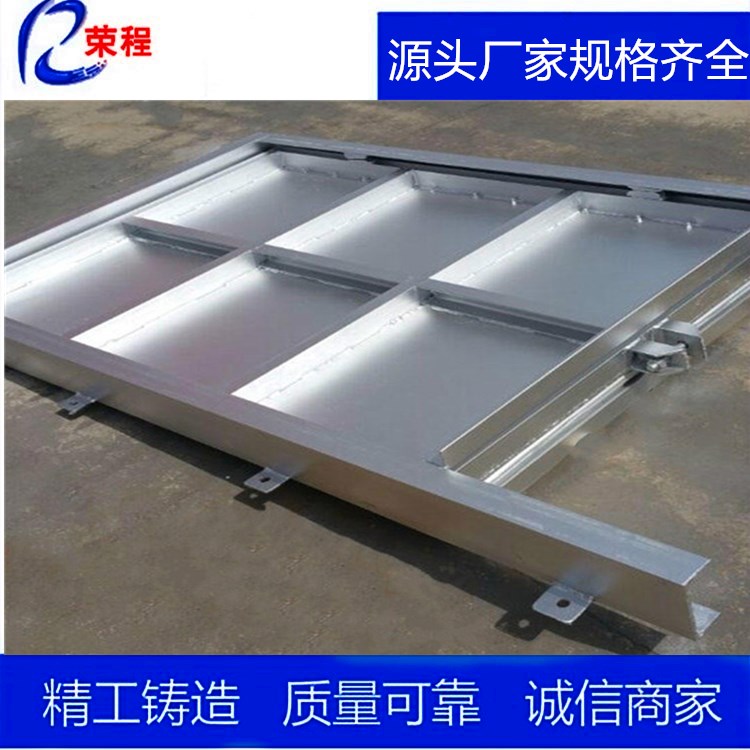

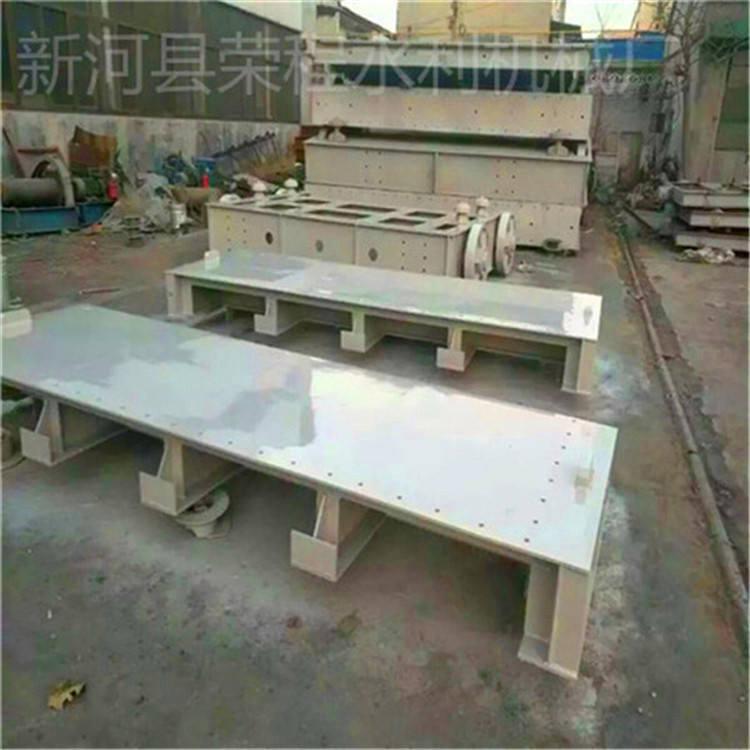

  The structure of the equipment is composed of the main body of the gate leaf, the support, the water stop device and the lifting lug. The main body of gate leaf is generally composed of panel, main beam, side beam (column) and secondary beam. The design water pressure is transmitted to the embedded parts of the gate slot through the plate beam support, and the segmented gate leaves are generally connected at the side column.

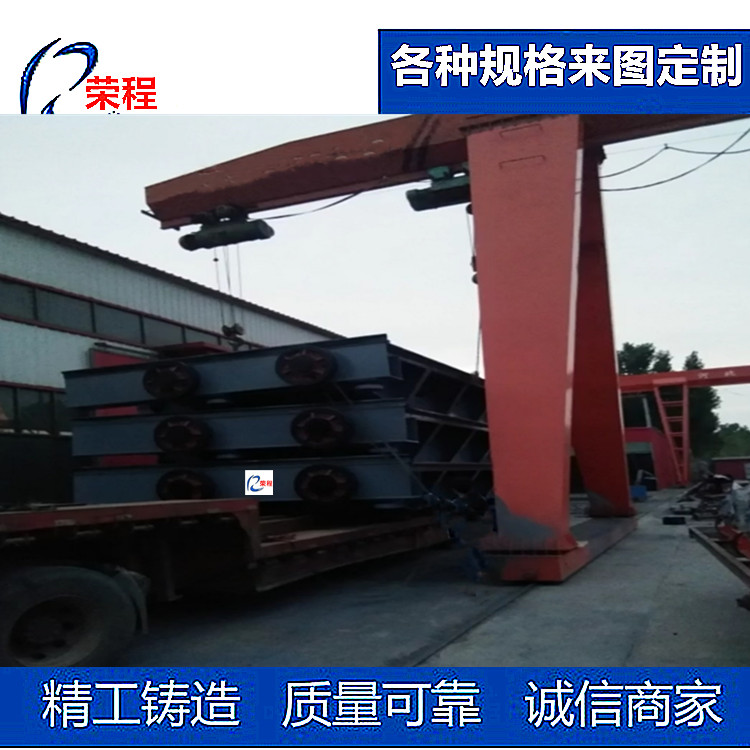

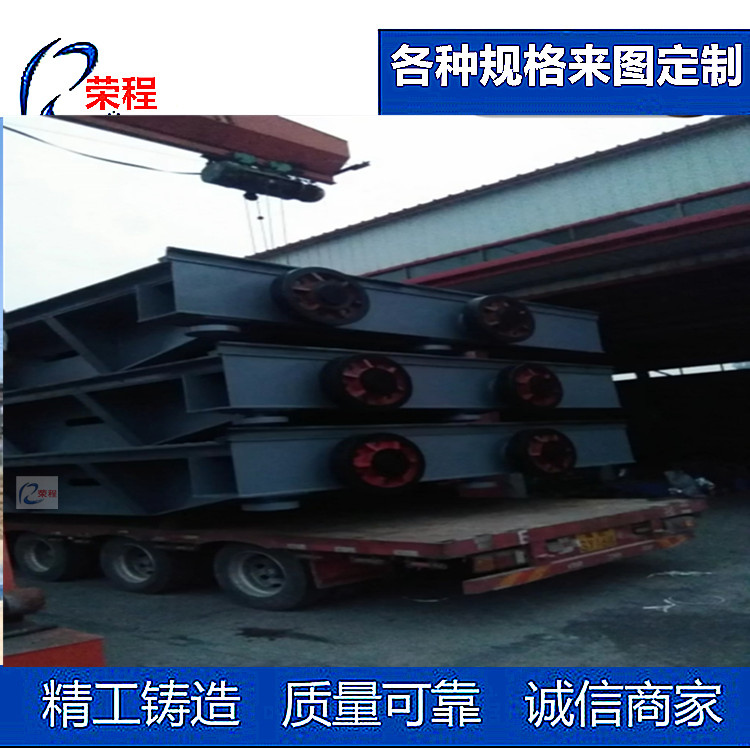

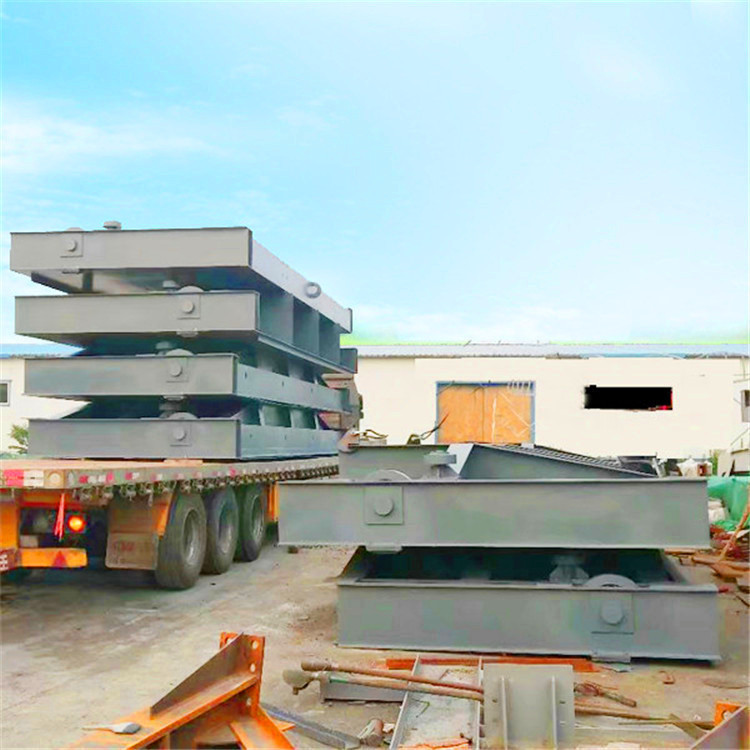

  Support, roller support and sprocket support are widely used in steel gate leaf support. The supporting part is also the walking part of the gate leaf. The support is a sliding block installed on the side beam of the main body of the gate leaf. It moves on the supporting track fixed in the gate slot, where is a plane or line. The support is a wheel installed on the side beam of the gate leaf, which moves on the gate slot track, where is a point or line. The chain wheel support is a chain like closed link composed of a series of cylindrical rollers around the gate leaf side column. This kind of gate is also called crawler gate.


  The supporting gate has large resistance and large opening force; the roller supporting resistance is small and the opening force is small, but the gate leaf is heavy; the sprocket supporting is also used, its advantage is that more small rollers bear the water pressure of the gate, and the single wheel pressure is small, which makes the track section laid in the gate slot small and light. According to the characteristics of the gate and the arrangement of the beam lattice, the roller supported gate is provided with cantilever (Extended) wheels, simply supported wheels and trolley wheel groups.

  The sealing devices installed on the main body of the gate leaf are generally made of special compressible wear-resistant rubber products, which are divided into top sealing, side sealing and bottom edge sealing. The joints of all water stop joints shall be hot glued during field assembly to ensure the effect of surrounding water stop.

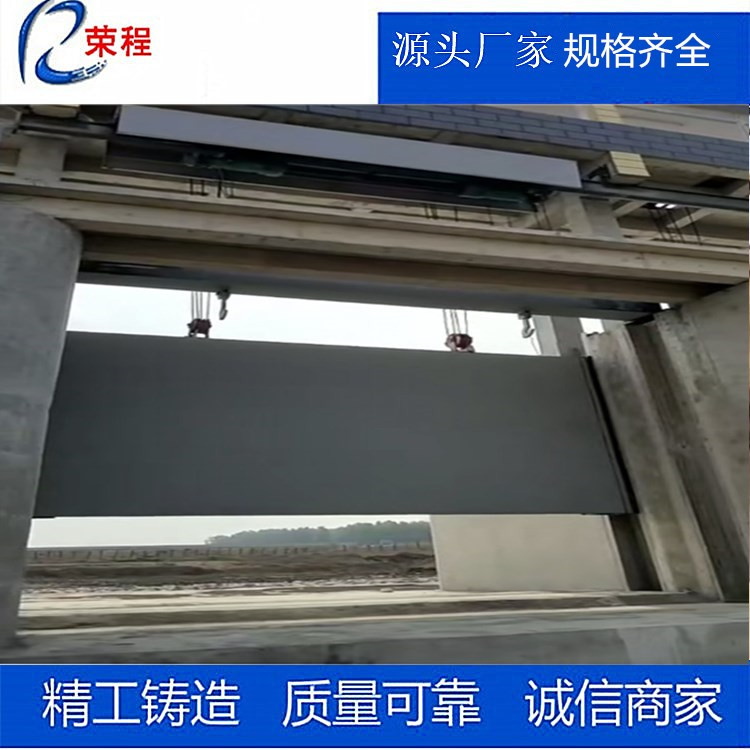

  The lifting lug of the steel gate is generally set on the top beam of the main structure of the gate leaf. According to the size and form of the structure, it can be directly welded on the top beam or manufactured separately, and then welded on site.

  Steel gate is a kind of water retaining and sealing equipment commonly used in water supply and drainage engineering, water conservancy and hydropower engineering. It is composed of door frame, gate, sealing ring and adjustable wedge-shaped pressure block. After the steel gate is worn for a long time, its sealing surface can be ensured to work normally through the wedge-shaped pressure block. The steel gate uses high-quality steel plate as the base material, uses rubber water stop and anti-corrosion as the surface for sand spraying, rust removal and hot zinc spraying. The steel gate has the characteristics of reasonable and solid structure, strong wear resistance and corrosion resistance, reliable performance, convenient installation, use and so on.


  Durability of steel gate: the light steel structure is composed of cold-formed thin-walled steel member system, and the steel frame is made of super anti-corrosion cold-rolled galvanized sheet, which can effectively avoid the influence of steel corrosion in construction and use, and improve the service life of light steel members. The service life of the structure can reach 30 years.


  Rongcheng water conservancy steel gate series is roughly divided into: steel gate, sliding steel gate, pulley steel gate, stoplog gate, radial gate, machine gate integrated steel gate, plane gate, plane fixed wheel steel gate, steel composite gate, hot spraying zinc steel gate, stainless steel gate, flap gate and other steel gates, which can be customized according to drawings to produce various types of steel gates Door, different customers need different places, Rongcheng water conservancy machinery factory is your good choice.
